FuseBox EV40B EV Charger Supply Unit 40A with B Type RCD
EV40B
1 in stock.
EV Charger Supply Unit
Fusebox EV40B
- 63A B Type RCD
- 40A MCB
- Removable DIN rail
- Easy to remove round knock-outs on all sides
- Captive screws on the front cover

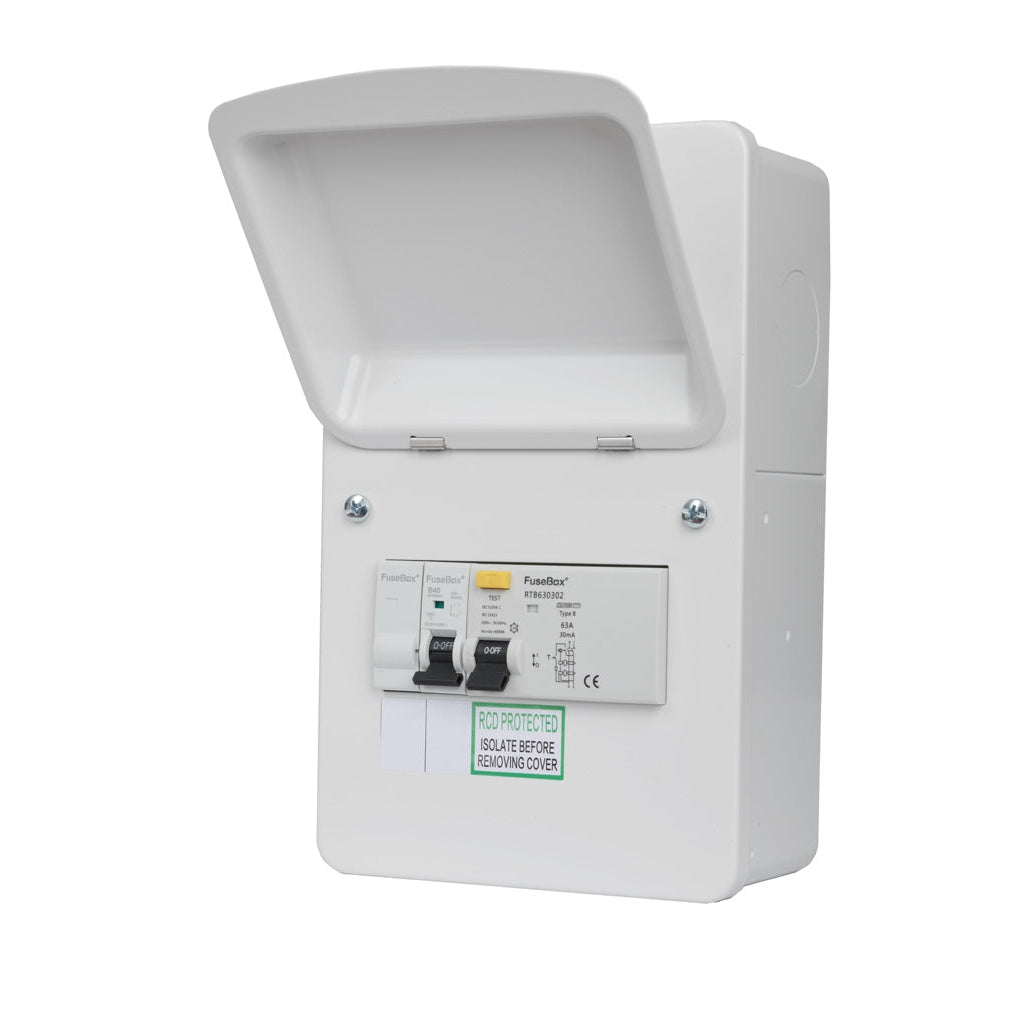

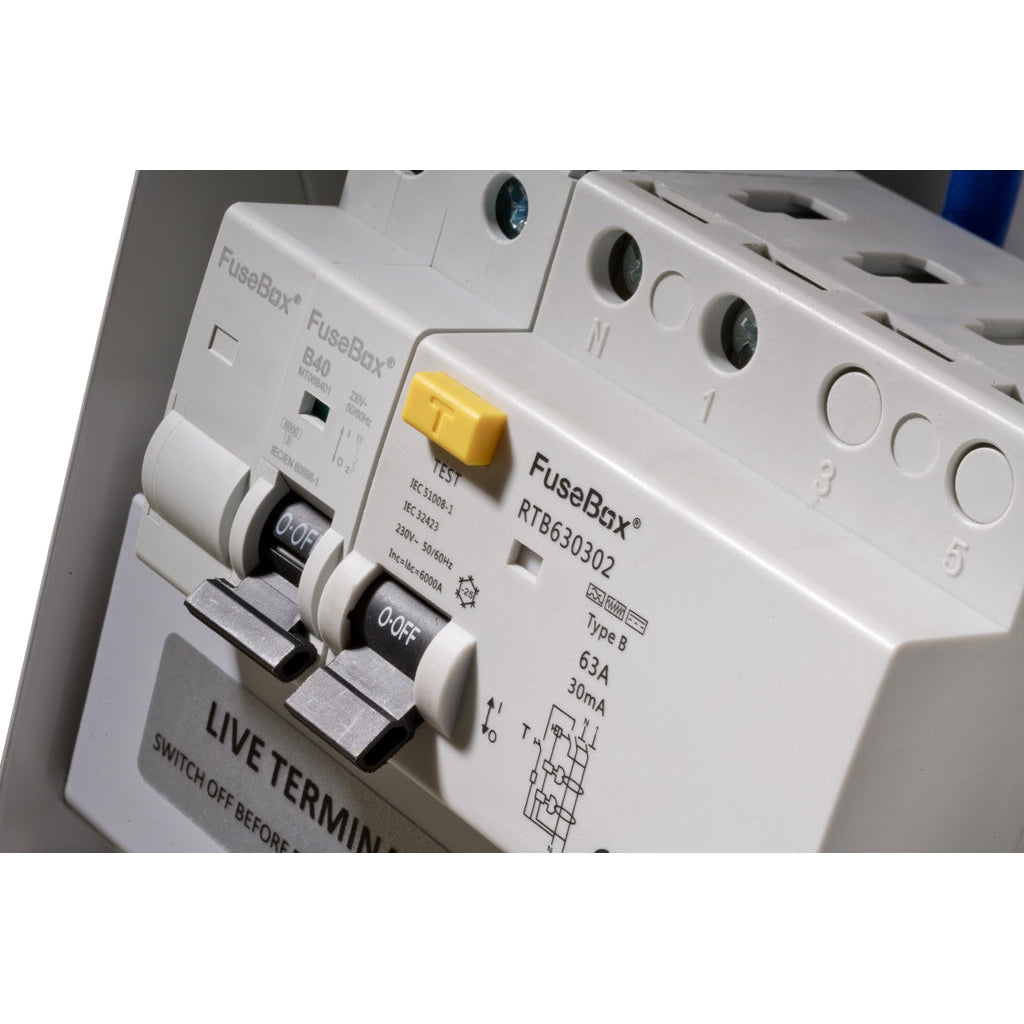

The FuseBox EV40B is a distribution board designed to provide the supply and protection to an electric vehicle (EV) charging point. It comes complete with a 63A 30mA B Type RCD and 40A B type MCB.
This device is fitted with a Type B filter ensuring tripping for AC currents, pulsating DC currents and smooth DC fault currents.
FuseBox manufactures a range of high quality domestic circuit protection. This includes main switch, dual RCD, electric vehicle and isolation consumer units along with a range of devices such as RCBOs, MCBs, AFDDs and accessories.
.
| Brand | FuseBox |
| Category | Metal EV Charger Board |
| Current Rating | 63A |
| Dimensions | 162mm(w) x 259mm(h) x 113mm(d) |
| Number of Poles | 2 |
| Short Circuit Rating | 40A |
| Tripping Characteristics | B Curve |
| RCD Type | B |
| Tripping Sensitivity | 30mA |
| Incoming Device | 63A 30mA Type B RCD |
| Number of Modules | 6 |
| Number of Outgoing Ways | 2 |
| Surge Protection Fitted | No |
