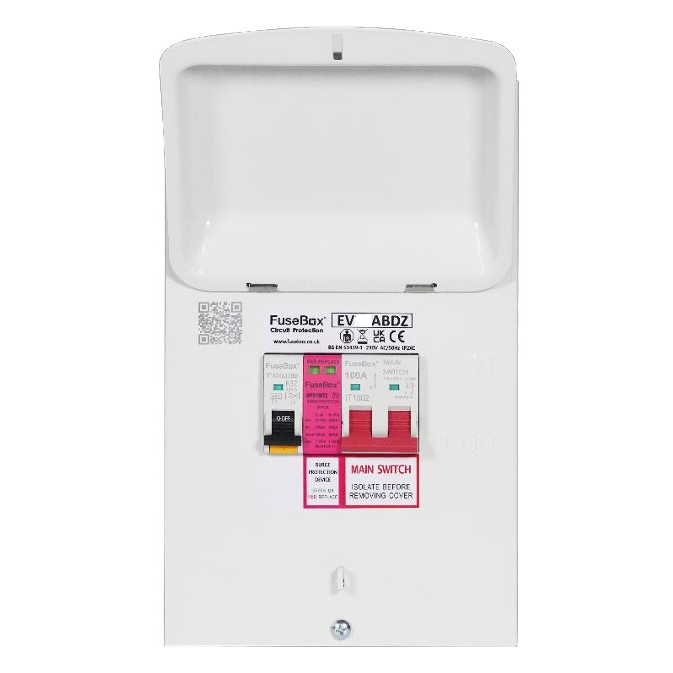

FuseBox EV40ABDZ EV Charger Supply Unit 40A Bi-directional RCBO and T2 SPD
EV40ABDZ
2 in stock.
EV Charger Supply Unit 40A Bi-directional RCBO and T2 SPD
FuseBox EV40ABDZ
- 100A main switch incomer
- 40A Type A Double Pole RCBO - Bi directional
- T2 Surge Protection Device (SPD).
- Removable DIN rail
- Easy to remove round knock-outs on Top and Bottom
- Captive screws on the front cover
- Stylish white powder coated finish. RAL 9001
The FuseBox EV40ABDZ EV Charger Supply Unit combines robust protection and convenient features for electric vehicle installations. It includes a 100A main switch incomer and a 40A Type A double pole RCBO with bi-directional capability, ensuring reliable circuit control. Integrated T2 surge protection guards against voltage spikes, enhancing safety. Designed for ease of installation, it features removable DIN rails, easy-to-remove knock-outs, and captive screws on the front cover. Finished in a durable white powder coating (RAL 9001), this unit is both functional and visually discreet, ideal for expert electrical setups.
.
| Brand | FuseBox |
| Category | Metal EV Charger Board |
| Current Rating | 100A |
| Dimensions | 152mm(w) x 261mm(h) x 93mm(d) |
| Number of Poles | 2 |
| Short Circuit Rating | 40A |
| Tripping Characteristics | B Curve |
| RCD Type | A |
| Tripping Sensitivity | 30mA |
| Incoming Device | 100A Isolator |
| Number of Modules | 4 |
| Number of Outgoing Ways | 1 |
| Surge Protection Fitted | Yes |
